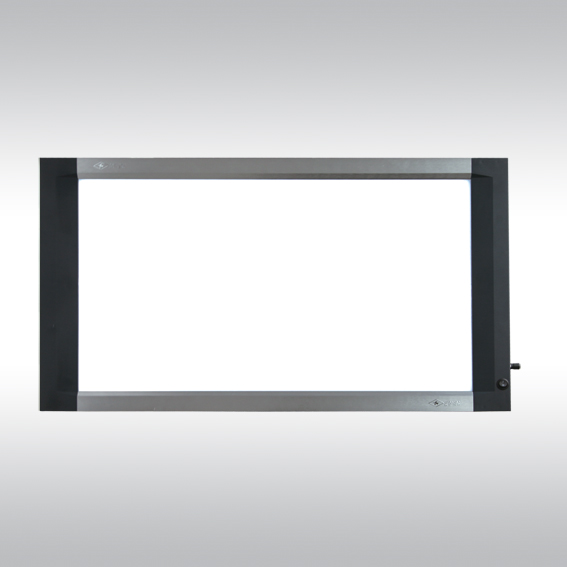

LED X-ray Film Viewer
5 0 ReviewsYuanyan X ray film viewer is designed for observing X Ray film for medical personnel, it’s applied to clinical view the medical image film.Price: ￥ 0 / 台Price: ￥ 0 / 台-
YGD-03
-
YUANYAN
Quantity: Product Introduction：
Yuanyan X ray film viewer is designed for observing X Ray film for medical personnel, it’s applied to clinical view the medical image film.
Model:
YGD-02-1：Single Panel
YGD-02-2：Double Panel
YGD-02-3：Triple Panel
YGD-02-4：Quadrant Panel
Product features：
Adopting LED back-view method
Built-in AC to DC rectifier
Long service life
Uniform and mild light source
Light adjustable
Ultra-thin,thickness is25mm
Product parameters：
Model Single Panel Double Panel Triple Panel Quadrant Panel Overall dimension 505*502*25 890*502*25 1270*502*55 1646*502*25 Screen size
362*420 745*420 1125*420 1504*420 Power Rating 20W 40W 60W 80W Weight（Kg） 6.5 9 16 21.5 Light source color temperature ≥6500K Screen light uniformity 2000cd/m2 Screen light balance ≥70% Life span ≥5000h
Product Introduction：
Yuanyan X ray film viewer is designed for observing X Ray film for medical personnel, it’s applied to clinical view the medical image film.
Model:
YGD-02-1：Single Panel
YGD-02-2：Double Panel
YGD-02-3：Triple Panel
YGD-02-4：Quadrant Panel
Product features：
Adopting LED back-view method
Built-in AC to DC rectifier
Long service life
Uniform and mild light source
Light adjustable
Ultra-thin,thickness is25mm
Product parameters：
Model Single Panel Double Panel Triple Panel Quadrant Panel Overall dimension 505*502*25 890*502*25 1270*502*55 1646*502*25 Screen size
362*420 745*420 1125*420 1504*420 Power Rating 20W 40W 60W 80W Weight（Kg） 6.5 9 16 21.5 Light source color temperature ≥6500K Screen light uniformity 2000cd/m2 Screen light balance ≥70% Life span ≥5000h
-
-
-
-
