Multifunctional transfer bed

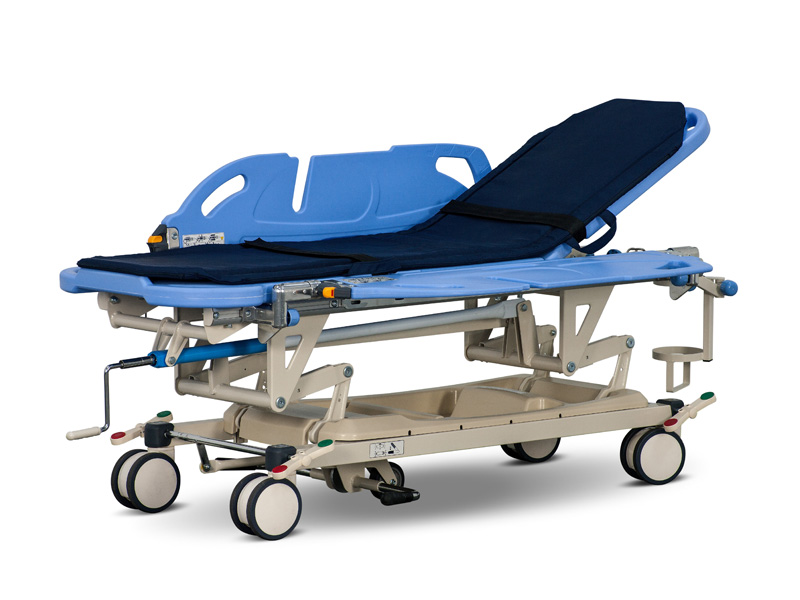

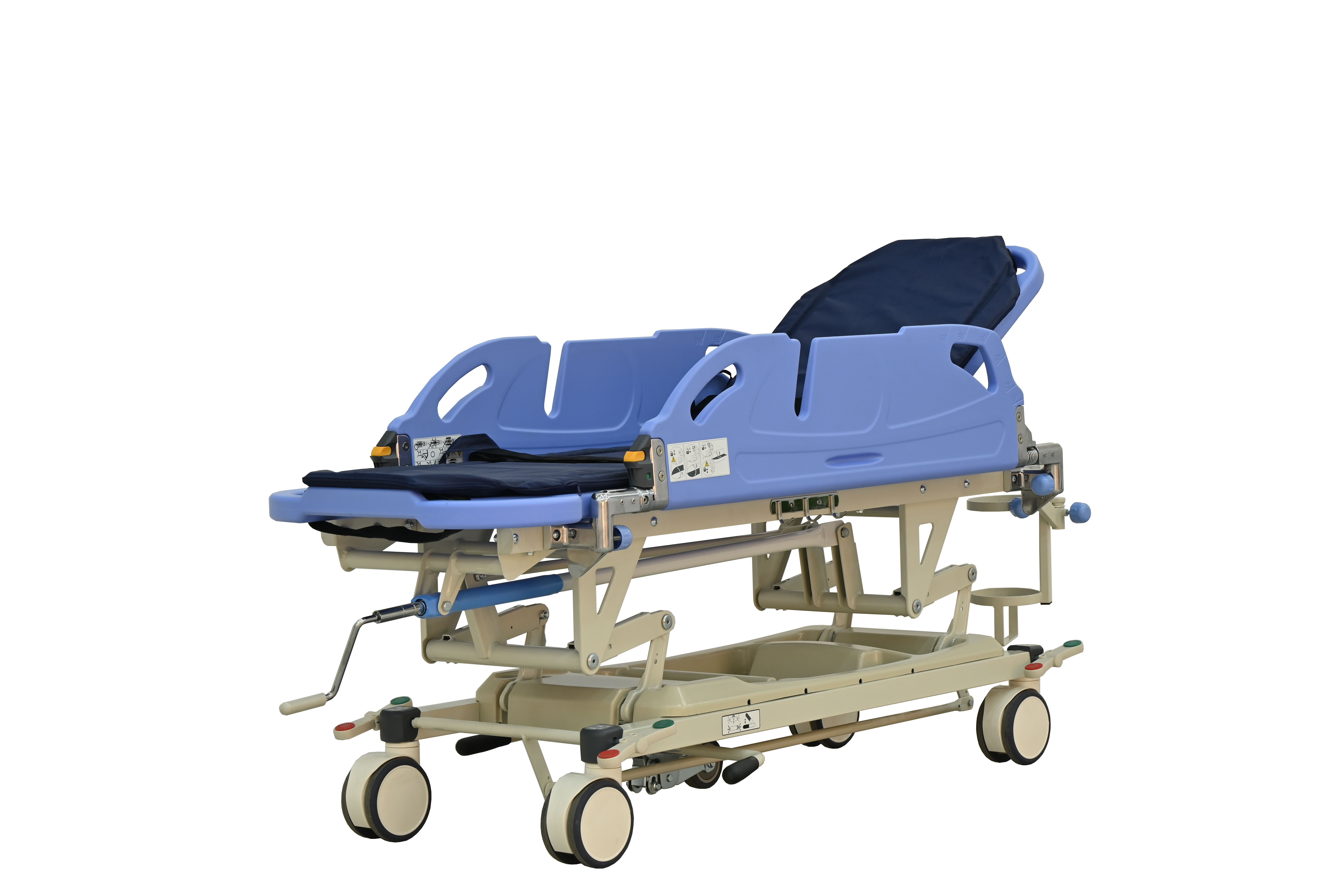

FA-800A stretcher cart Functional Presentation：

• Applicable Department: Emergency room / Gastroscope room / Operation room

• Back lift

• Using gas spring to Stepless lift

• Oxygen bottle holder

• when standby, put it under the backboard, easy and safe.

• Oxygen capacity 500 liters (Diameter 105-115mm)

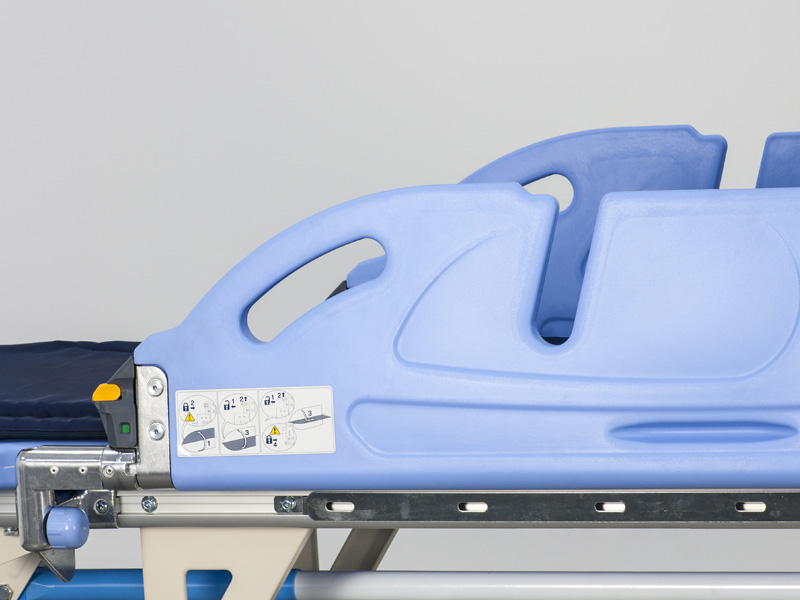

• Rotating side rails

• Side rails can be fixed at a horizontal position for drip and puncture .loading capacity 10kg

• Concave design can prevent catheter slide

• Base cover

• Base cover has two sections of different size and depth, multiple leaking holes, easy to use and clean, loading capacity 10kg

• Double sided silent casters with central lock

• 150mm diameter resin casters with lock pedal on four Corners

• Aluminum alloy pressing

• Integrated molding, more strength , more style

• Functional Presentation of bed body

• Back up and down 0-70 degrees，high-low 510-850mm

• Movable mattress

• Using high tech waterproof fabric and electro-static prevention, Washable and easy clean, design of three sections, only one person can transfer the patient.

• Double locks of side rails

• double lock on the foot side, prevent wrong operation, more safe

• ifth Wheel

• The conversion of stretcher cart is easily realized between " straight" and " free" by operating the lever. easier to control the direction with" straight"

How to move patient from bed to stretcher cart by one nurse

• Put stretcher cart near bed. make sure all casters are locked. then let stretcher cart lower than bed for moving patient.

• Let patient lie on the side, and then movable mattress is tiled in patient below

• Use movable mattress to slowly moving patient to stretcher cart from bed.

• Erecting stretcher cart side rails and make sure patient is tied up in bed. and then unlock casters.

Standard function

1. bed body

2. Movable mattress

3. side rails

4. Double sided caster

5. central lock

6. Fifth Wheel

7. Base cover

8. Oxygen bottle holder

9. hand crank

10. IV pole

Product parameters
