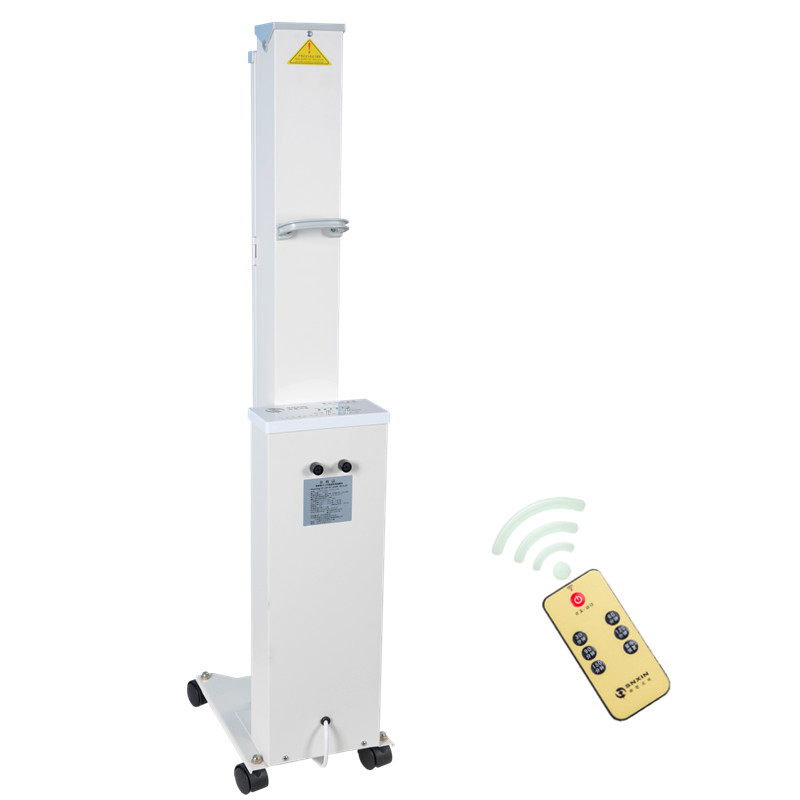

SX-150 ultraviolet disinfection vehicle

Product characteristics：

1. Product model: SX-150

2. Input power (VA): ≤ 150


3. UV lamp model and quantity: ZW150D19W * 1


4. Lamp arm length (mm): 860 ± 2


5. Lamp tube length (mm): 810


6. External dimensions (mm): 350 * 350 * 1050


7. Lamp arm adjustment angle (Å): 0-180


8. Universal wheel: 4 * 360 degree plastic wheel


9. Box material: Cold rolled sheet spray coated, the outer surface should be flat and smooth, without defects such as sharp edges, burrs, cracks, etc. The spray molded parts are bright, with uniform color and no peeling, sagging, or scratches. The text markings are clear and accurate.


10. Working conditions: Power supply 220V ± 22V 50Hz ± 1Hz


11. UV radiation wavelength: 253.7nm


12. Main bactericidal factor: ultraviolet radiation


13. Single UV lamp power: 150W


14. Average lifespan of ultraviolet lamps: ≥ 5000h


15. Applicable area: ≤ 50 square meters


16. Operation mode: manual control, remote control


17. Disinfection timing range: remote control of 30, 60, 90, 120, 150, five levels optional, and equipped with temporary disinfection pause function


18. The ultraviolet lamp tubes used in disinfection vehicles comply with the provisions of GB19258-2012
