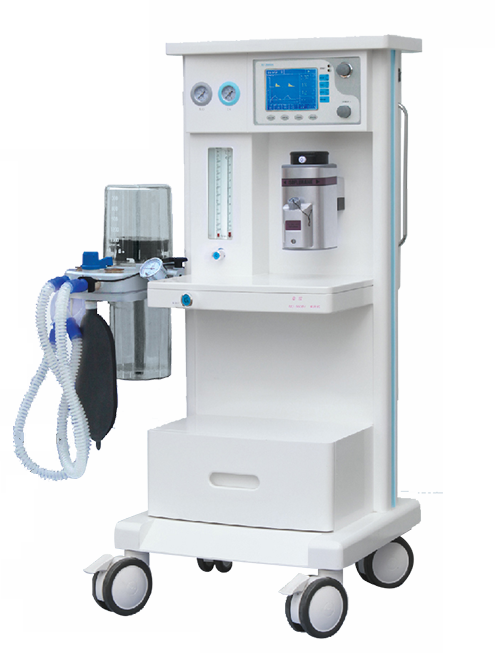

an economic type of Anesthesia machine
5 0 Reviewsan economic type of Anesthesia machine
The high-precision Vaporizer is designed with a stable concentration output,automatic compensation for pressure,temperature and flow rate.
And it is available to choose one kind of gas from Halothane,Enflurane,Isoflurane,and Sevoflurane,ensuring a successful anesthesia operation.
Reliable pneumatic transmission system
Economic and proper configuration of technologies,optional as required by the Customer.
Modularized design and upgrading.
Upgrading is available as required by the CustomerPrice: ￥ 0 / 台Price: ￥ 0 / 台-
MJ-560B1
-
AOKAI
Quantity: Main technical parameters
Anesthesia Machine
Main body：High-strength engineering plastic rack,light,beautiful and corrosion resistan
Scope of application：adult,child
Gas source：O₂：0.3-0.5MPa
Flow meter：O₂：0.1-2L/min 2.5-10L/min
Flow rate ofrapid oxygen supply：35~75L/min
Low oxygen pressure alarm：it will be alarmed when the oxygen pressure<0.2MPa
Vaporizer：it has the function of automatic compensation based on pressure,temperature
and flow rate.The regulation range of evaporator concentration is 0~5vol%.Among Halothane,Enflurane,Isoflurane and Sevoflurane,one can be chosenfor application as required by the customer.
Respiratory circuit：working mode：all-close,semi-close.semi-open
APL：1-4kPa
Respiratory Bellows：bellows for adults,bellows for childrentidal volume range:0-1500ml
Ventilator
Display mode：High-definition LCD screen display
Ventilation mode：IPPV,MANUAL(Manual monitoring of tidal volume.ventilation volume,respiratory rate)
Ventilation function：IRV
Ventlation parameters：
Tidal volume：50~1500ml
Rate：4~80bpm
I:E：2:1-1:3
Pressure range：-2~10kPa
Parameters for ventilation monitoring：tidal volume,ventilation volume,IPPV rate,V/E,peak pressure of airway.
pressure-time waveform
Security Alert System：
Airway pressure alarm：1)Fixed upper limit of minute ventilation alarm 181L/min；
2)low limit 1-10L/min
3)Asphyxiation alarm,no tidal volume input within 15 seconds,sound and light alarm
Power outage alarm
Power：AC 220V±10% 50Hz±1Hz
Main technical parameters
Anesthesia Machine
Main body：High-strength engineering plastic rack,light,beautiful and corrosion resistan
Scope of application：adult,child
Gas source：O₂：0.3-0.5MPa
Flow meter：O₂：0.1-2L/min 2.5-10L/min
Flow rate ofrapid oxygen supply：35~75L/min
Low oxygen pressure alarm：it will be alarmed when the oxygen pressure<0.2MPa
Vaporizer：it has the function of automatic compensation based on pressure,temperature
and flow rate.The regulation range of evaporator concentration is 0~5vol%.Among Halothane,Enflurane,Isoflurane and Sevoflurane,one can be chosenfor application as required by the customer.
Respiratory circuit：working mode：all-close,semi-close.semi-open
APL：1-4kPa
Respiratory Bellows：bellows for adults,bellows for childrentidal volume range:0-1500ml
Ventilator
Display mode：High-definition LCD screen display
Ventilation mode：IPPV,MANUAL(Manual monitoring of tidal volume.ventilation volume,respiratory rate)
Ventilation function：IRV
Ventlation parameters：
Tidal volume：50~1500ml
Rate：4~80bpm
I:E：2:1-1:3
Pressure range：-2~10kPa
Parameters for ventilation monitoring：tidal volume,ventilation volume,IPPV rate,V/E,peak pressure of airway.
pressure-time waveform
Security Alert System：
Airway pressure alarm：1)Fixed upper limit of minute ventilation alarm 181L/min；
2)low limit 1-10L/min
3)Asphyxiation alarm,no tidal volume input within 15 seconds,sound and light alarm
Power outage alarm
Power：AC 220V±10% 50Hz±1Hz
-
-
-
-
