Electric knife

Elecrosurgical electrode knife/pen：

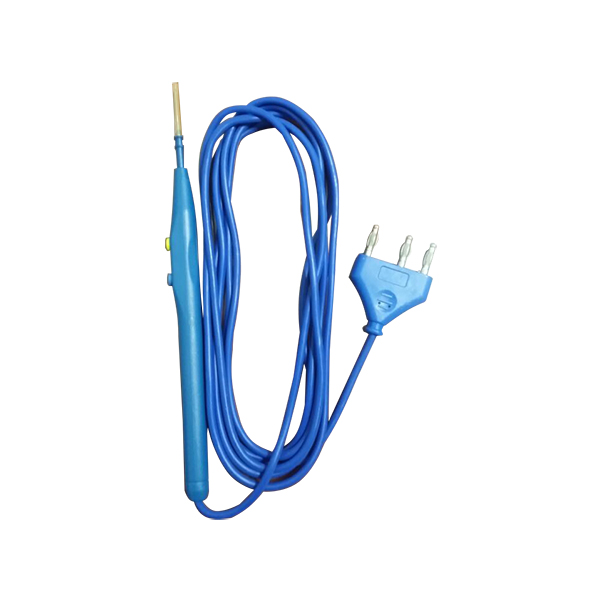

• Rocker-type hand-controlled high-frequency electric knife electric knife, surgical pen, single-use, ethylene oxide (EO) sterilization, 3 meters long connection, equipped with 7mm long standard knife type (flat) cutter head. The cutter head can also be replaced with a special tungsten wire electrode for LEEP knife with extended blade shape, spherical shape, needle shape and various specifications.

Electric knife pen classification:

• Basically divided into two categories, manual control, foot control.

Technical characteristics:

1. Frequency range: 0.3-3.0MHz

2. handle insulation strength; ≥ 3000V 50Hz/60S

3. Cable insulation strength; ≥3000V 50Hz/5Min

4. Ethylene oxide residue; ≤10mg/KG

5. working environment: ambient temperature: 5-40℃; relative temperature:＜80%; atmospheric pressure: 86Kpa-106Kpa

Dimensions：

1. Knife shell length(cm): 16cm

2. cutter head length(cm): 7cm (hexagonal design makes the operation safer);

3. cutter head diameter: 2.36mm;

4. wire length(m): 3m standard;

5. applicable frequency range:0-1.0MHZ;

6. load impedance:200

Product advantages:

1. The international standard high-frequency electrosurgical standard interface design meets the requirements of national standard GB9706.4 (international standard IEC60601-1). It can be used with imported and domestic high-frequency electric knives of various brands.

2. Ergonomic design: Streamlined appearance, comfortable hand and excellent instrument performance reduce muscle tension and fatigue caused by prolonged surgery, minimizing the risk of surgery.

3. Sealed waterproof structure and unique hexagonal fixed design for anti-cutting head, which can prevent the immersion of liquid and cause the automatic activation of the electric pen, and prevent the electric head from rotating or falling freely, ensuring the safety of patients and doctors. .

4. The built-in circuit board is made of immersion gold technology. Compared with other brands of tin plating process, it has obvious advantages. It does not prevent the oxidation short circuit of the button caused by long time or air humidity, and the conductivity is better.

5. The copper foil thickening and widening design of the circuit board can safely pass the current and will not burn the wires or the wires are hot.

6. The silicone waterproof seal is designed under the button to ensure that there will be no short circuit accident due to accidental liquid leakage during the operation.

7. Made of thick copper wire, it can pass the higher frequency current and is safe and reliable.
