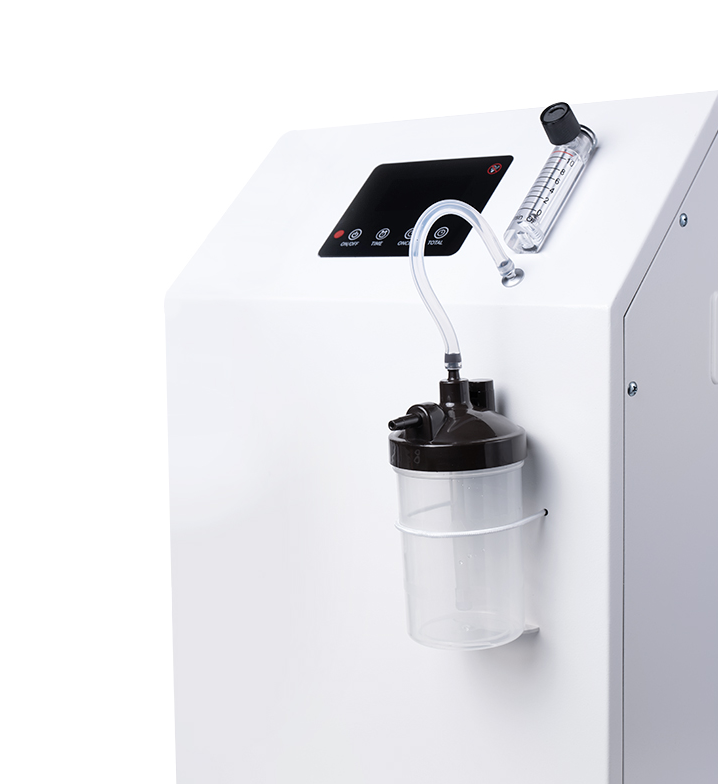

Single flow oxygen concentrator

Y007F-10 single flow oxygen generator parameters：

1. Recommended maximum oxygen flow rate：10L/min

2. Flow range at outlet nominal pressure of 7kPa：0.5L/min～10L/min

3. Apply a back pressure of 7kPa at the recommended maximum flow rate to achieve an accuracy of ± 10% of the indicated flow rate

4. Oxygen concentration at zero nominal pressure at the output end (reaching the required oxygen concentration level within 30 minutes of initial start-up)：Oxygen production 0.5L/min-10L/min, oxygen concentration ≥ 90%

5. Output pressure：0.02MPa～0.07MPa

   Compressor safety valve relief pressure：280kPa±50kPa

6. supply voltage：220V±22V/110V±11V，50Hz/60Hz±1Hz

7. Input power：800VA

8. net weight：31kg

9. size：38*35*60(cm)

10. Altitude: When rising from sea level to 1828m, the oxygen concentration will not decrease, but it will be below 90% when rising from 1828m to 4000m

Y007F-10 Single Flow Oxygen Generator Safety：

• Shutdown due to current overload or loose connections

• High temperature shutdown of compressor

• Low oxygen concentration alarm

• Minimum working time: no less than 30 minutes

• Electrical classification: Class I equipment, Class B application part, operating mode: continuous operation

• Normal working environment

• Temperature range：5℃～35℃

• Relative humidity range：≤80%

• Atmospheric pressure range：860hPa至1060hPa

• Oxygen outlet temperature：≤46℃

• Storage and transportation environment

• Temperature range：-40℃～+70℃

• Relative humidity range：10%～100%，No condensation

• Atmospheric pressure range：860hPa至1060hPa

• Attention: When the storage and transportation temperature is below 5 ℃, the oxygen concentrator should be left at normal operating temperature for more than 4 hours before use

• Suggestion: The length of the oxygen pipe should not exceed 6 meters, and the oxygen pipe should not be bent or deflated

Y007F-10 Single Flow Oxygen Configuration List：

1. 1 oxygen generator

2. Two disposable nasal oxygen tubes

3. 6 air filters

4. 1 fuse

5. 1 copy of operating instructions

6. 1 Remote control
