embedded ultraviolet sterilization lamp

Sterilization principle

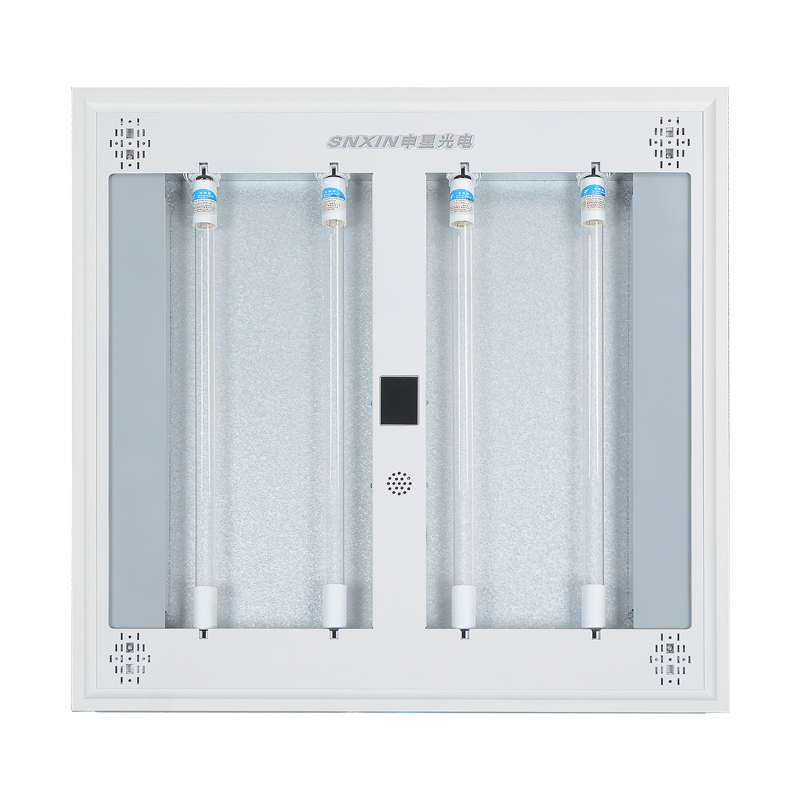

• Shenxing brand sx-q60 embedded ultraviolet sterilization lamp, hereinafter referred to as (sterilization lamp) is a special device for disinfection and sterilization of indoor air. The product takes ultraviolet as the main sterilization factor and uses the ultraviolet sterilization lamp to radiate ultraviolet with the main wavelength of 253.7nm. The sterilization principle of killing bacteria and destroying microbial DNA to inactivate pathogenic microorganisms achieves the purpose of disinfection and sterilization, and the ultraviolet radiation illuminance of a single ultraviolet sterilization lamp It shall not be less than 50 ㎼ / ㎠.

Scope of application

• The sterilization lamp is widely used in medical and health, pharmaceutical, food processing industry, families, schools, sanatoriums, biological research institutes, public toilets, etc.


Main technical parameters

1. Working environment conditions: temperature: 5 ℃ ~ + 40 ℃, humidity ≤ 80%. Power supply: AC 220V ± 22V, 50Hz ± 1Hz, atmospheric pressure: 86kpa ~ 106kpa.


2. Input power: ≤ 65VA.


3. Specification and quantity of ultraviolet sterilization lamp: 4x15w.


4. Power of single ultraviolet sterilization lamp: 15W.


5. Remote control timing range: 30 minutes, 60 minutes, 90 minutes, 120 minutes, 150 minutes, 180 minutes, six gears.


6. Overall dimension: 600x600x40 (mm).


7. Installation method: embedded (can be hoisted and wall mounted). It is recommended to select the most suitable position where ultraviolet can cover disinfection.
