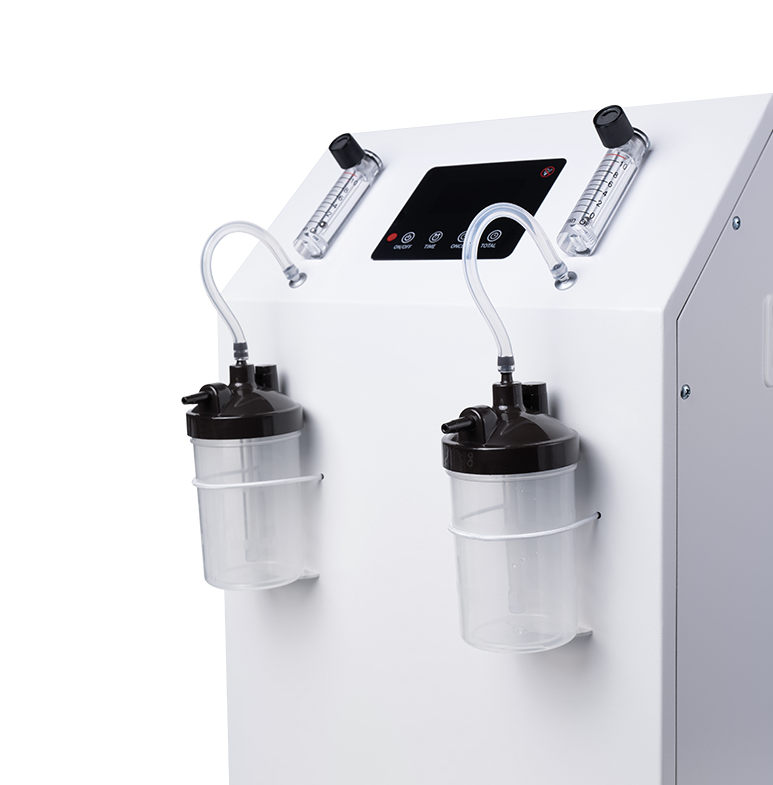

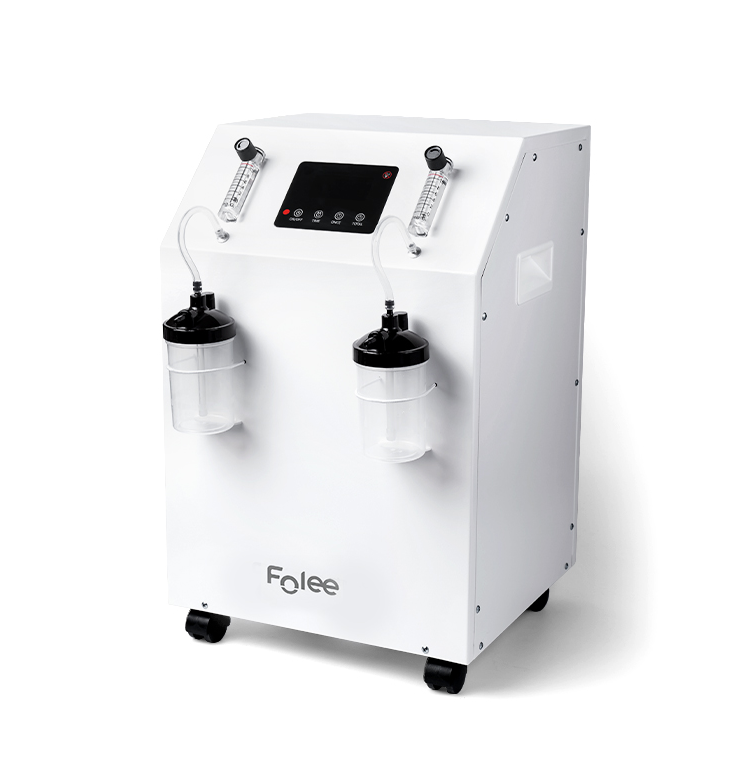

Double flow oxygen generator

Y007F-10Parameters of dual flow oxygen concentrator：

• Recommended maximum oxygen flow rate：10L/minDual flow rate can be adjusted separately

• Flow range at outlet nominal pressure of 7kPa：0.5L/min～10L/min

• Apply a back pressure of 7kPa at the recommended maximum flow rate to achieve an accuracy of ± 10% of the indicated flow rate

• Oxygen concentration at zero nominal pressure at the output end (reaching the required oxygen concentration level within 30 minutes of initial start-up)：Oxygen production 0.5L/min-10L/min, oxygen concentration≥90%

• Output pressure：0.02MPa～0.07MPa

• Compressor safety valve relief pressure：280kPa±50kPa

• noise：≤60dB(A)

• Maximum atomization rate：≥0.1mL/min（Model with atomizer）

• supply voltage：220V±22V/110V±11V，50Hz/60Hz±1Hz

• Input power：800VA

• net weight：31kg

• size：38×35×60(cm)

• altitude：When rising from sea level to 1828m, the oxygen concentration will not decrease, but it will be below 90%，When going from 1828m to 4000m

• security system：Shutdown due to current overload or loose connections、High temperature shutdown of compressor、Low oxygen concentration alarm

• Minimum working time：Not less than 30 minutes

• Electrical classification: Class I equipment, Class B application part, operating mode: continuous operation

• Normal working environment：Environmental temperature range: 5℃~35℃、Relative humidity range:≤80%

• Atmospheric pressure range: 860hPa to 1060hPa

• Oxygen outlet temperature: ≤46℃

• Storage and transportation environment：Environmental temperature range: -40℃~+70℃、Relative humidity range:10%~100%, no condensation、Atmospheric pressure range: 860hPa to 1060hPa

• Attention: When the storage and transportation temperature is below 5 ℃, the oxygen concentrator should be left at normal operating temperature for more than 4 hours before use

packing list：

1. 1 oxygen generator

2. Two disposable nasal oxygen tubes

3. 6 air filters

4. 1 fuse

5. 1 copy of operating instructions

6. 1 Remote control
