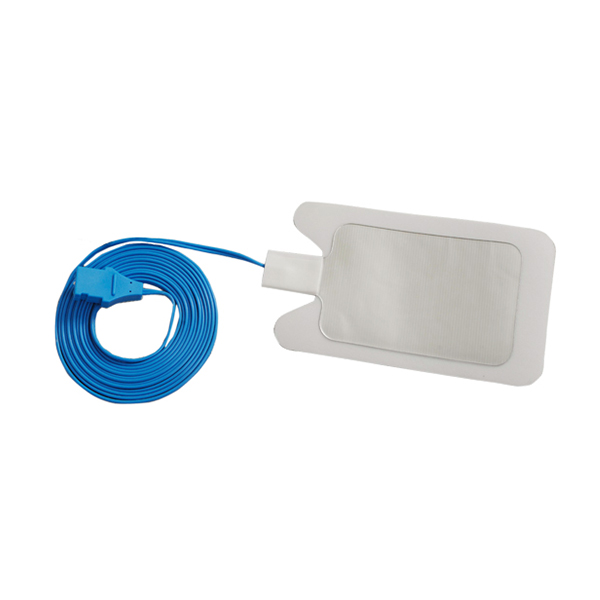

ZK-GP series neutral electrode
5 0 ReviewsThe neutral electrode consists of a conductive voltage sensitive adhesive, aluminum foil, sponge, and anti-mucosa. It generates a loop in the high-frequency electrosurgical device to ensure high-frequency current with low current density between the skin and the electrode of the plate.Price: ￥ 0 / 个Price: ￥ 0 / 个-
ZK-GP
-
ZEKANG
Quantity: Product structure and performance:
The neutral electrode consists of a conductive voltage sensitive adhesive, aluminum foil, sponge, and anti-mucosa. It generates a loop in the high-frequency electrosurgical device to ensure high-frequency current with low current density between the skin and the electrode of the plate.
Product Categories:
According to the structure of the neutral electrode: monopole and bipolar; form: horizontal and vertical.
According to the connection mode of the neutral electrode: wireless neutral electrode plate and neutral electrode plate with line.
According to the use of neutral electrodes are divided into: adult, children, infants.
Technical characteristics:
Contact resistance: frequency (400~600) KHz, current about 200mA＜75Ω
Adhesion area: conductive adhesive area＞64.52 square centimeter
Adhesion: Hanging weight 200g weight, 30S will not fall off
Cytotoxicity:≤1 level reaction
Allergenic: None
Main advantages：
Conductive adhesive passes the strict biocompatibility test and is completely non-irritating to the skin, non-toxic and non-sensitizing.
Conductive adhesive is excellent in adhesion and can be closely attached to the skin from beginning to end.
The conductive rubber has very small resistance, and the temperature rise is extremely low during use, which will not cause skin burn and has high safety.
After the product is used, the conductive adhesive has no residue on the skin.
Scope of application:
Mainly used in orthopedic surgery, cardiology surgery, gynecological surgery, urology surgery, neurosurgery, otolaryngology surgery, and gastroenterology surgery.
