multi--functional Ventilator

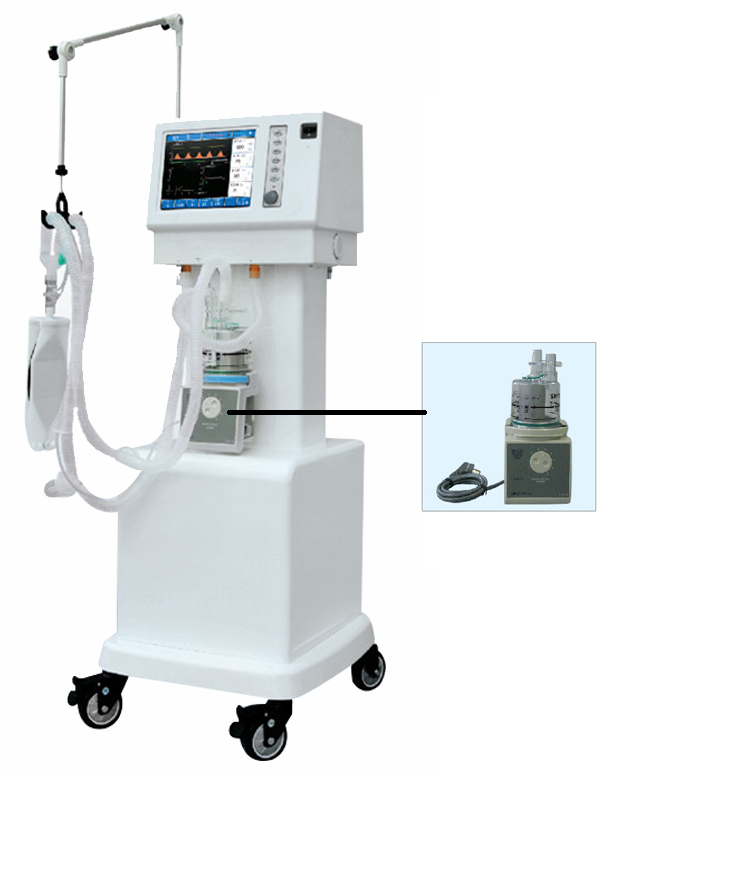

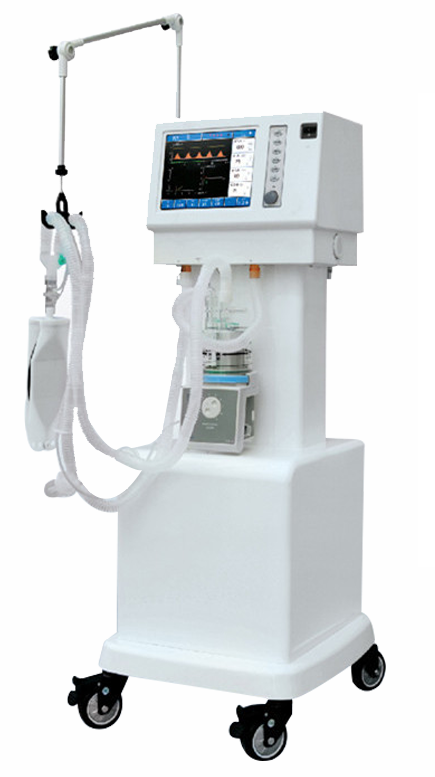

5 0 ReviewsThe AV-2000B3 is a multi-functional Ventilator adopting pneumatic,electronic control and microcomputer technology.Exported components are utilized to guarantee operational stability and reliability.With color screen (TEF) to display variousmeasuring and configuration parameters,the device is very suitable for respiratory treatment,applicable for medical,surgical andgynecological departments,the department of pediatrics,first aid,and ICU departments of hospitals at different levels.(air comp-ressor which has'standby'function inside and air source can be connected)Price: ￥ 0 / 台Price: ￥ 0 / 台-
AV-2000B3
-
AOKAI
Quantity: Characteristic:
Large colored LCD,big font display,free changheable angles of views
Nine gear temperate control system with heating protection function
Respiratory
Applicable to internal medicine, surgery, gynecology, pediatrics, emergency, ICU and other departments at all levels of hospitals
Product parameters
Display method：
High definition 10.4 TFT color LCD screen display
Mode：
VCV PCV SIMV PSV PSV+SIMV CPAP
ventilation function：
PEEP SIGH Standby, suction platform, inverse ventilation
parameter：
tidal volume：20~1800ml
frequency：2~120 Times/minute
SIMV frequency：2~20 Times/minute
i.e：4：1~1：8
attraction trigger pressure：-10~10cmH2O
flow trigger sensitivity：1~20L/min
PEEP：0~25cmH2O
pressure control：3~50cmH2O
pressure limit：5~60cmH2O
pressure slope：1~10gears
traffic settings：1~10gears
expiratory sensitivity：10%~90%
time control：1-10 seconds
sigh：1.5 times suction time（60-120 adjustable times）
inspiratory plateau：0~50%
oxygen concentration：21~99%
Ventilation detection：Exhaled tidal volume、Inhalation tidal volume、Ventilation capacity、IPPVfrequency、SIMVfrequency、Total respiratory rate、Autonomous inspiratory frequency、I/E、Peak airway pressure、MEAN、Positive end expiratory pressure、Inspiratory trigger pressure、Inspiratory platform、oxygen concentration、Battery capacity、Pressure-time waveform、Flow rate-time waveform、Flow rate-volume loop、Pressure-volume ring
Characteristic:
Large colored LCD,big font display,free changheable angles of views
Nine gear temperate control system with heating protection function
Respiratory
Applicable to internal medicine, surgery, gynecology, pediatrics, emergency, ICU and other departments at all levels of hospitals
Product parameters
Display method：
High definition 10.4 TFT color LCD screen display
Mode：
VCV PCV SIMV PSV PSV+SIMV CPAP
ventilation function：
PEEP SIGH Standby, suction platform, inverse ventilation
parameter：
tidal volume：20~1800ml
frequency：2~120 Times/minute
SIMV frequency：2~20 Times/minute
i.e：4：1~1：8
attraction trigger pressure：-10~10cmH2O
flow trigger sensitivity：1~20L/min
PEEP：0~25cmH2O
pressure control：3~50cmH2O
pressure limit：5~60cmH2O
pressure slope：1~10gears
traffic settings：1~10gears
expiratory sensitivity：10%~90%
time control：1-10 seconds
sigh：1.5 times suction time（60-120 adjustable times）
inspiratory plateau：0~50%
oxygen concentration：21~99%
Ventilation detection：Exhaled tidal volume、Inhalation tidal volume、Ventilation capacity、IPPVfrequency、SIMVfrequency、Total respiratory rate、Autonomous inspiratory frequency、I/E、Peak airway pressure、MEAN、Positive end expiratory pressure、Inspiratory trigger pressure、Inspiratory platform、oxygen concentration、Battery capacity、Pressure-time waveform、Flow rate-time waveform、Flow rate-volume loop、Pressure-volume ring
-
-
-
-
