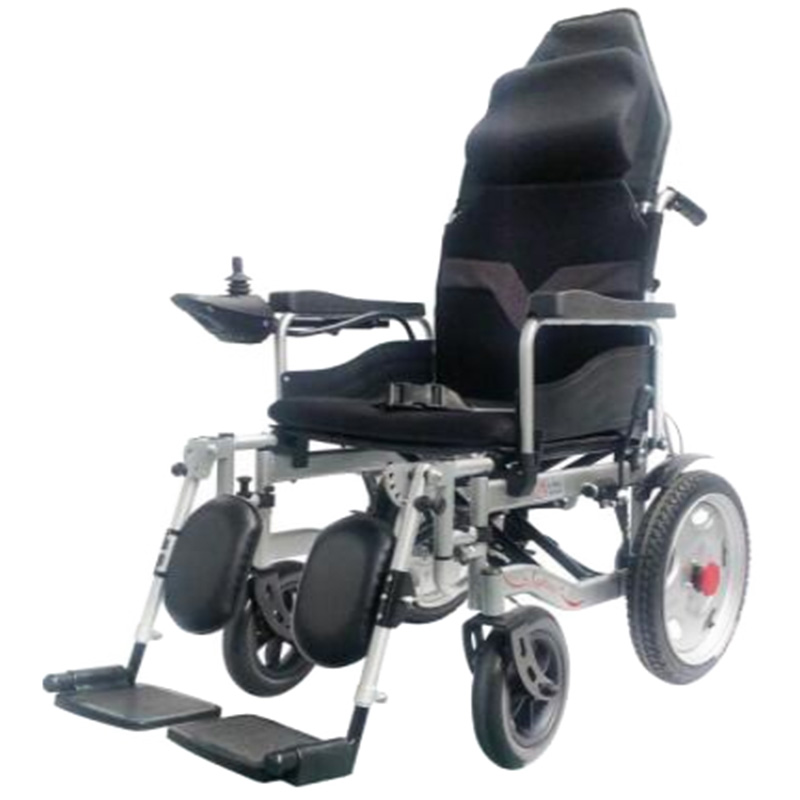

Electric wheelchair

Product parameters：

• Wheelchair size:115*66*128

• Seat width:45cm

• Seat height:50cm

• Seat depth:42cm

• back height:40cm

• Head restraint height:47cm

• Handrail height:22cm

• Front wheels:10 inches

• Rear wheels:16 inches

• Bearing capacity:100kg

• N.W:30.5kg(exclude battery)

• Battery:9.1kg

• G.W:43kg

• Packing size:83.5*42*74cm

Product configuration:

1. Steel frame, surface metal paint treatment, double cross tube support;

2. Two-color breathable cloth seat back pad, with independent upper pad, good air permeability and comfortable ride;

3. The armrest can be lifted back, plastic guard plate, high-quality sponge armrest, support the elbow;

4. The backrest is foldable and can be adjusted at any position from 95° to 175° when lying back;

5. The orthopedic group has a lifting and dismantling leg design, which is easy to disassemble and can be rotated externally by 180°，Can be adjusted up and down;

6. 10-inch pneumatic tires on the front wheel, enlarged metal front forks;

7. The rear wheel adopts 16-inch pneumatic tire and aluminum alloy wheel;

8. Equipped with an extension lever handbrake, the operation is labor-saving;

9. The drive device adopts permanent magnet DC motor MY1016Z-250W24V, the speed 120r/min, with electromagnetic brake, equipped with clutch;

10. The controller 24V/35A is responsive, the speed is adjustable, the maximum speed is 6km/h

11. The power supply device is equipped with two 12V lead-acid batteries, and the battery life is not less than 10 kilometers

12. Charger: 24V12AH, input voltage: 220V50Hz55W, output power: 29.6V1.8A.
