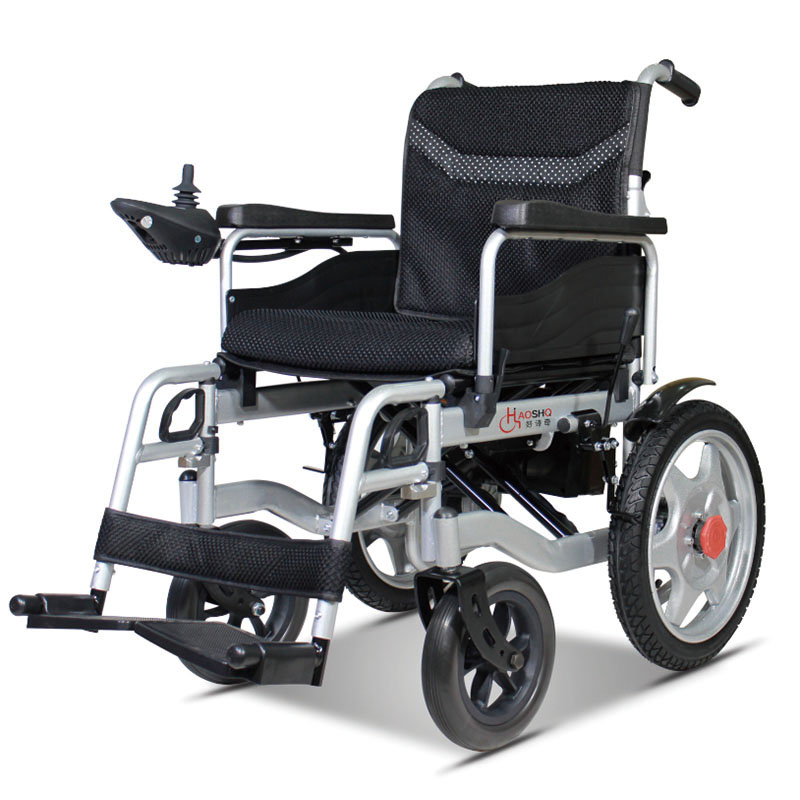

Electric wheelchair

Product features：

1. The frame is made of high-strength steel pipe, and the surface is treated with liquid car paint; the frame can be folded;

2. Easy-to-remove and washable breathable mesh seat cushion and backrest; armrests can be lifted;

3. Detachable tripod, adjustable for debugging and 180-degree rotation;

4. Engineering plastic skid plate with leg straps; 10-inch PU solid front wheel, 16-inch pneumatic tire at the rear; intelligent parking controller; electric wheelchair motor with electronically controlled brakes; with anti-roll wheels.

Product parameters：

• Wheelchair：113*66*93cm

• Height of front end of seat cushion：500mm

• Backrest height：400mm

• Width between handrails：450mm

• Folded size：810*400*720mm

• Battery：24V 12Ah lead acid battery

• Charger:：24V, 2A

• Rear wheel：16 inch inflatable wheel

• Front wheel：10 inch PU wheel

• Frame material：Steel

• Seat width：450mm

• Handrail height：220mm

• Motor power：250w*2pcs electronically controlled brake

• Controller：24v, 45A

• Safe load：100kg

• Gross weight (including battery)：42kg

• Net weight (without battery)：33kg

• Maximum speed：≤6km/h

• Horizontal road braking：≤1.5m

• Maximum safe gradient braking：≤3.6m (6°)

• Slope performance：9°

• Static stability：≥9°

• Dynamic stability：≥6°

• Obstacle crossing height：≥40mm

• Cross groove width：100mm

• Climbing ability：≥6°

• Minimum turning radius：1200mm

• Theoretical driving distance：≥15km

• The frame can be folded and the surface is treated with liquid car paint;

• Easy to remove and wash the breathable mesh seat cushion and backrest. The armrest can be lifted. Detachable tripod, adjustable angle, foldable footrest

• Engineering plastic anti-slip plate with leg straps

• Front height of seat cushion: 500mm, backrest height: 400mm, seat width: 450mm; armrest height：220mm, width between armrests: 450mm

• Battery: 24v 12AH lead-acid battery, intelligent parking controller, electronically controlled brake

• Front 10-inch PU solid wheel, rear 16-inch pneumatic tire, with anti-roll rear wheel

• The frame is made of steel, the motor power is 250w*2pcs, the controller：24v, 45A, the safe load is 100kg 33kg;

• Maximum speed：≤6km/h, Slope performance：9°Theoretical driving distance：≥15km

• Gross weight：44kg (lead acid) 39kg (lithium battery) Net weight：39kg (lead acid) 34kg (lithium battery)

• Packing size：830*390*750
