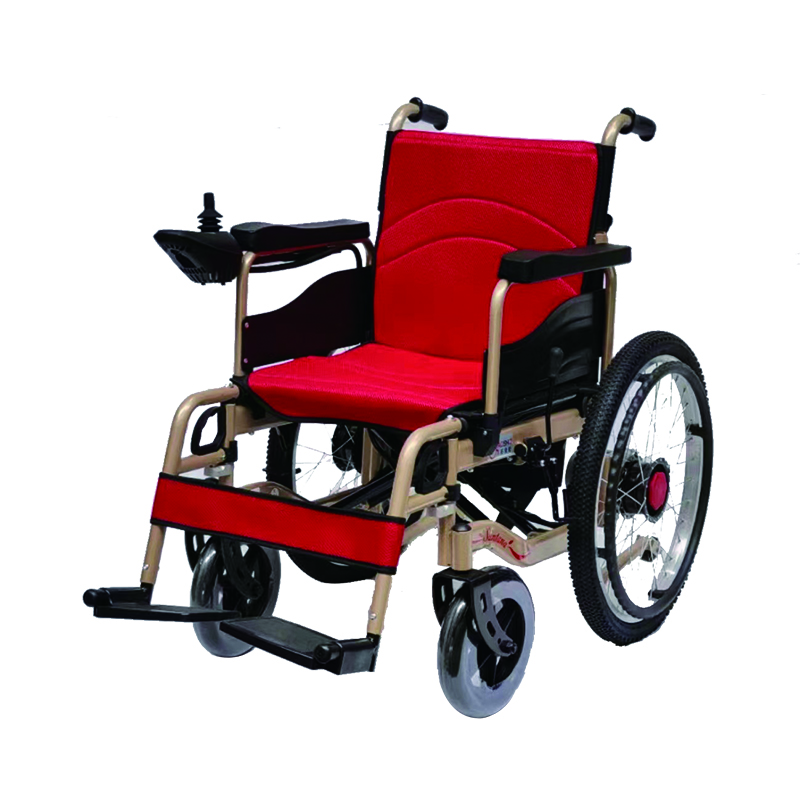

Electric wheelchair BK-DDLY-007

Product features：

• The frame is made of high-strength steel pipe, and the surface is powder sprayed; the frame can be folded;

• Easy-to-remove and washable breathable mesh seat cushion and backrest; armrests can be lifted;

• Detachable tripod, adjustable for debugging and 180-degree rotation;

• Engineering plastic anti-skid plate with leg straps; front wheel 10-inch PU solid wheel,

• 22-inch pneumatic tire for rear wheel; intelligent hill-stop controller;

• Electronically controlled brake type electric wheelchair motor; with anti-roll wheels.

• Four shock absorbers front and rear

Product parameters：

1. Wheelchair: 113*66*93cm

2. Height of front end of seat cushion:500mm

3. Backrest height: 400mm

4. Width between handrails:450mm

5. Folded size:810*400*720mm

6. Battery:24V 12Ah lead acid battery

7. Charger:24V, 2A

8. Rear wheel:16 inches inflatable wheel

9. Front wheel:10 inches PU wheel

10. Frame material:Steel

11. Seat width:450mm

12. Handrail height:220mm

13. Motor power:250w*2pcs

14. Electronic brake controller:24v, 45A

15. Safe load:100kg

16. Gross weight (G.W) (including battery):42kg

17. Net weight (N.W) (without battery):33kg

18. Max speed:≤6km/h

19. Horizontal road braking:≤1.5m

20. Maximum safe gradient braking:≤3.6m (6°)

21. Slope performance:9°

22. Static stability:≥9°

23. Dynamic stability:≥6°

24. Obstacle crossing height:≥40mm

25. Cross groove width:100mm

26. Climbing ability:≥6°

27. Minimum turning radius:1200mm

28. Theoretical driving distance:≥15km
